Traveling with a Bicycle… Made Easy

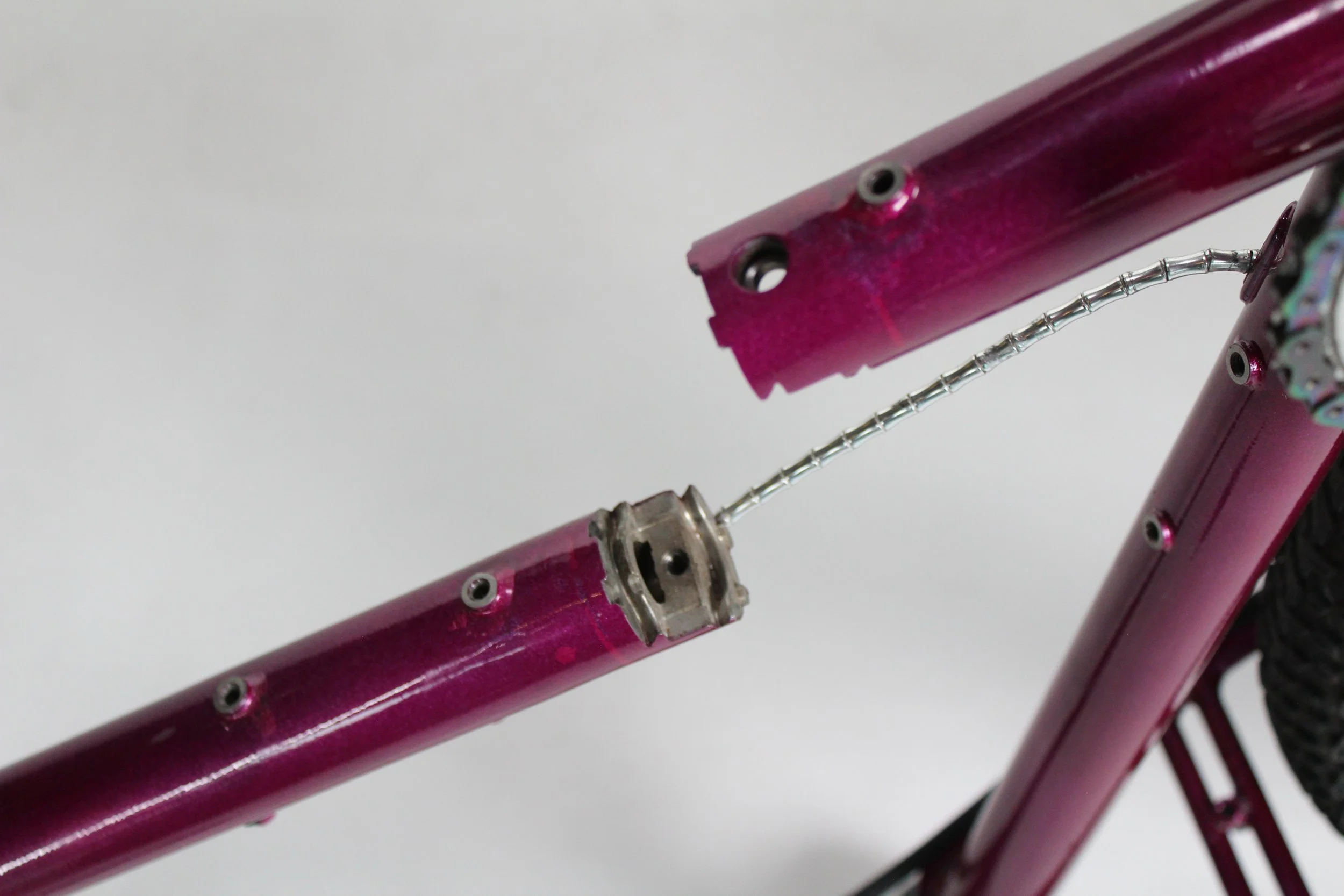

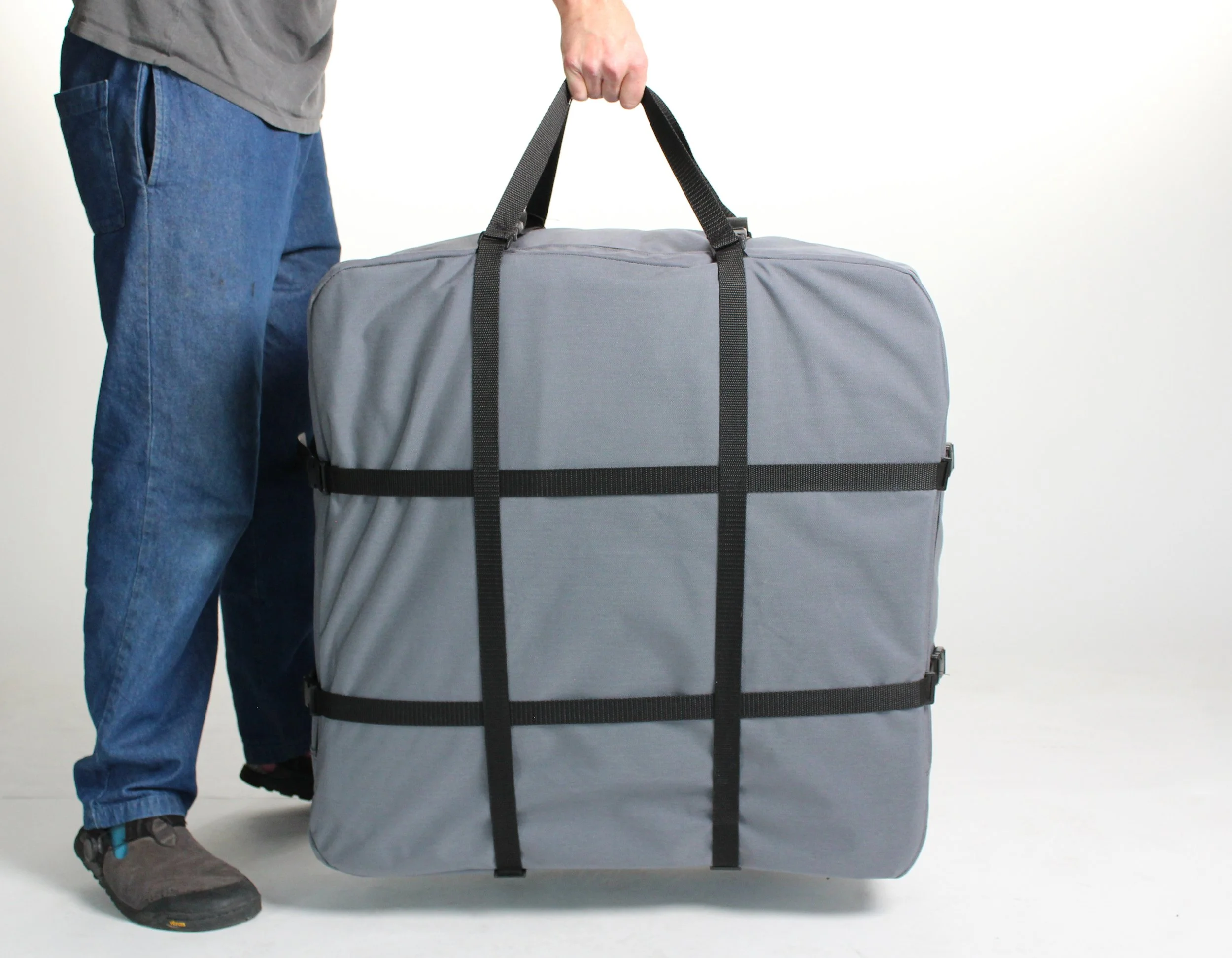

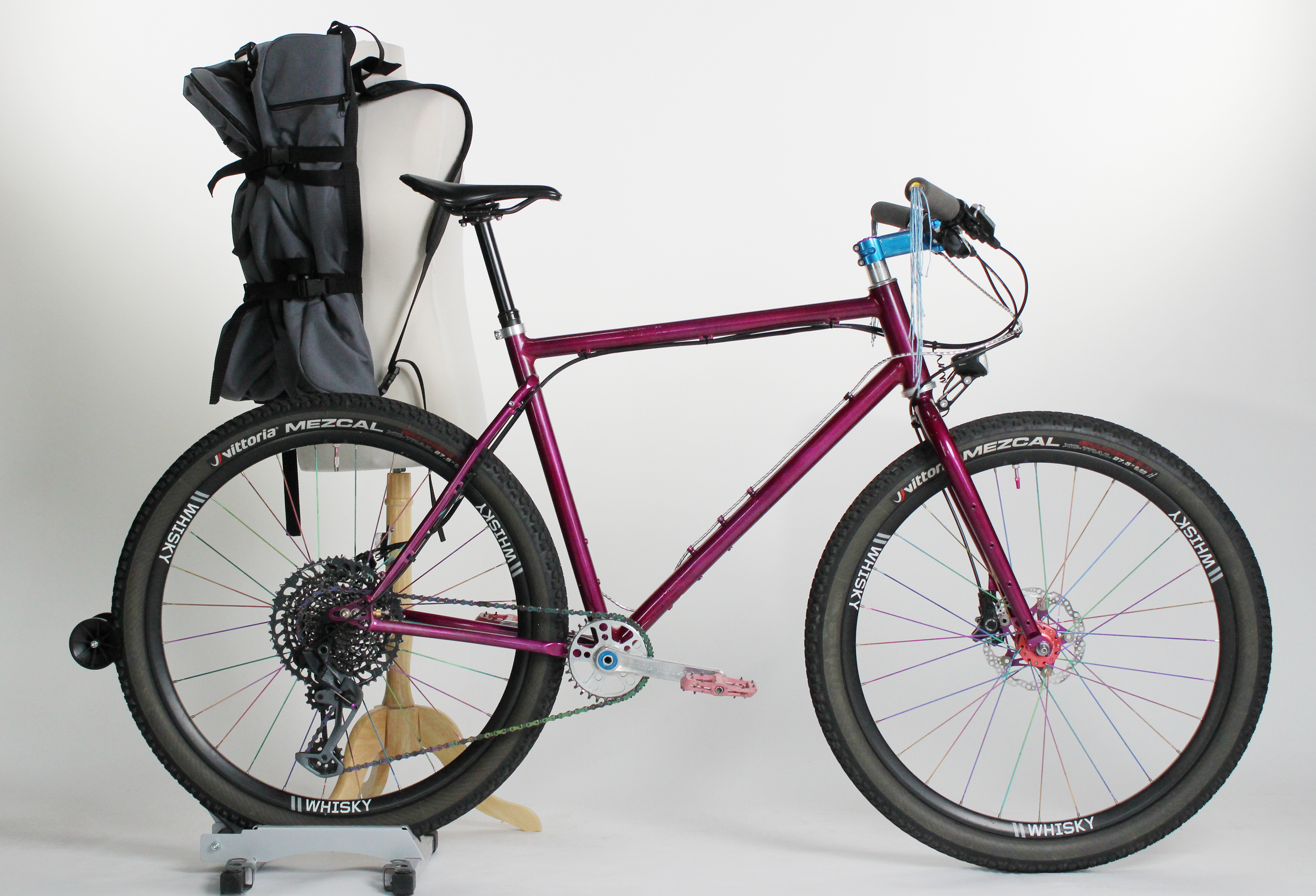

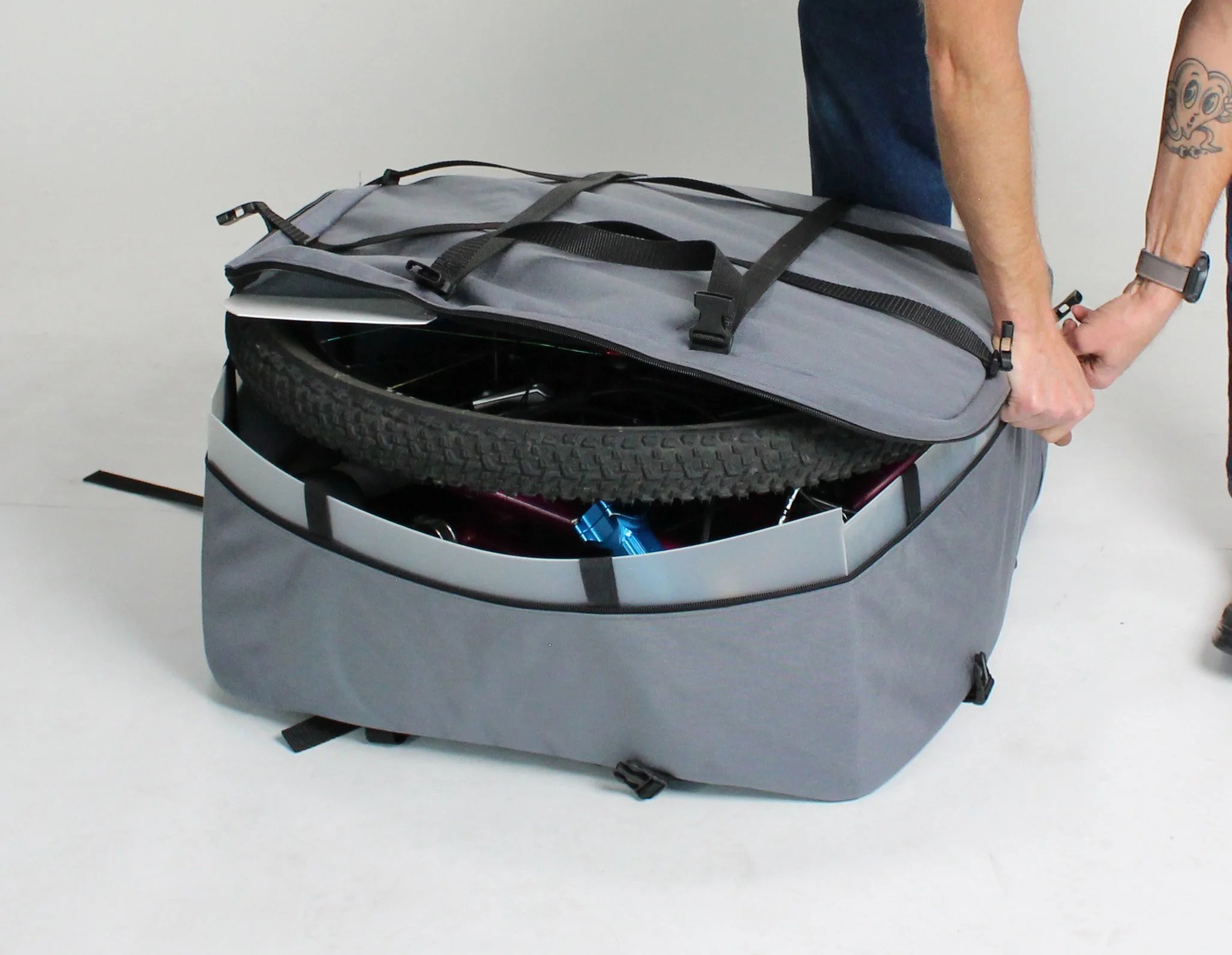

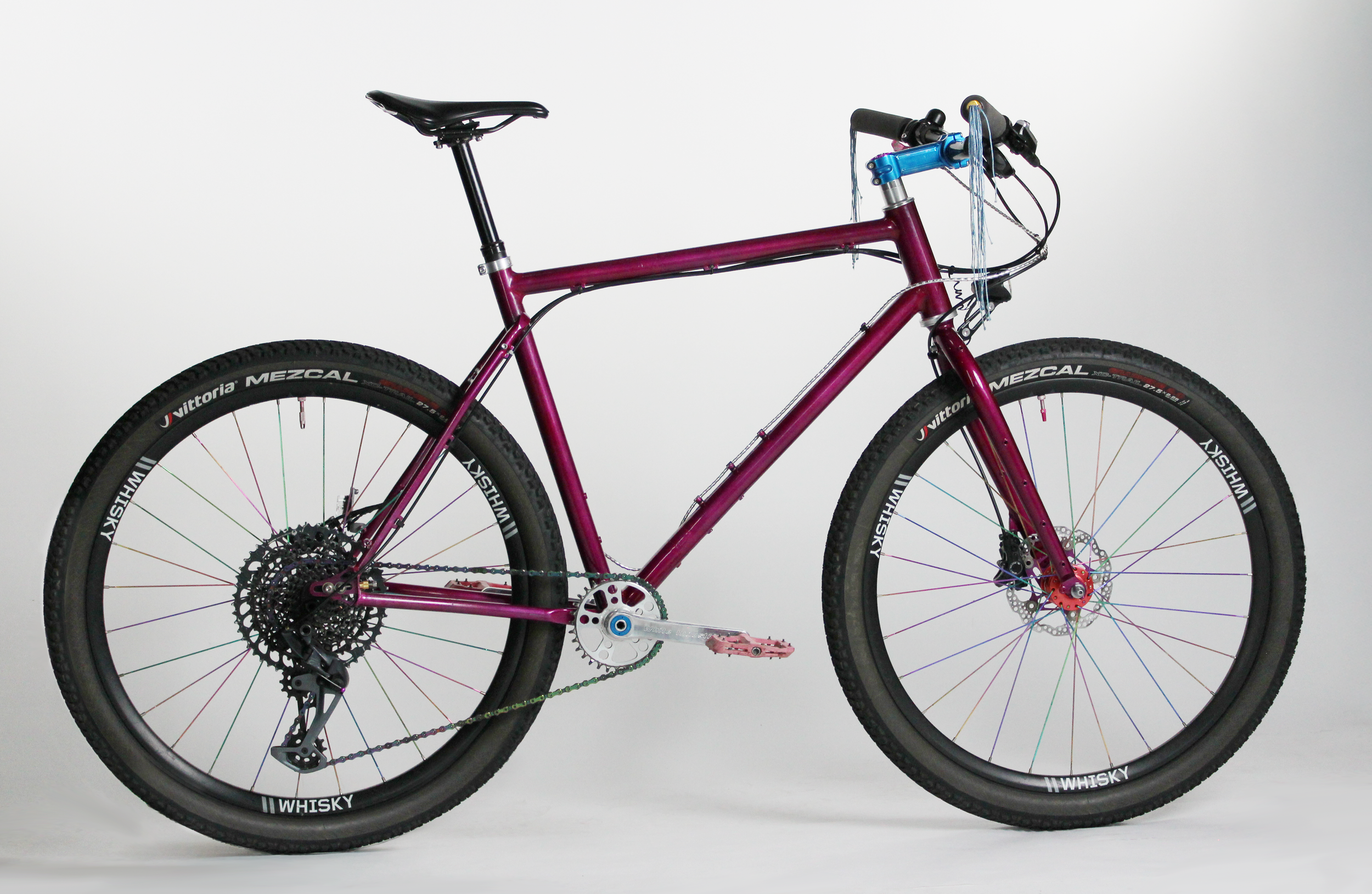

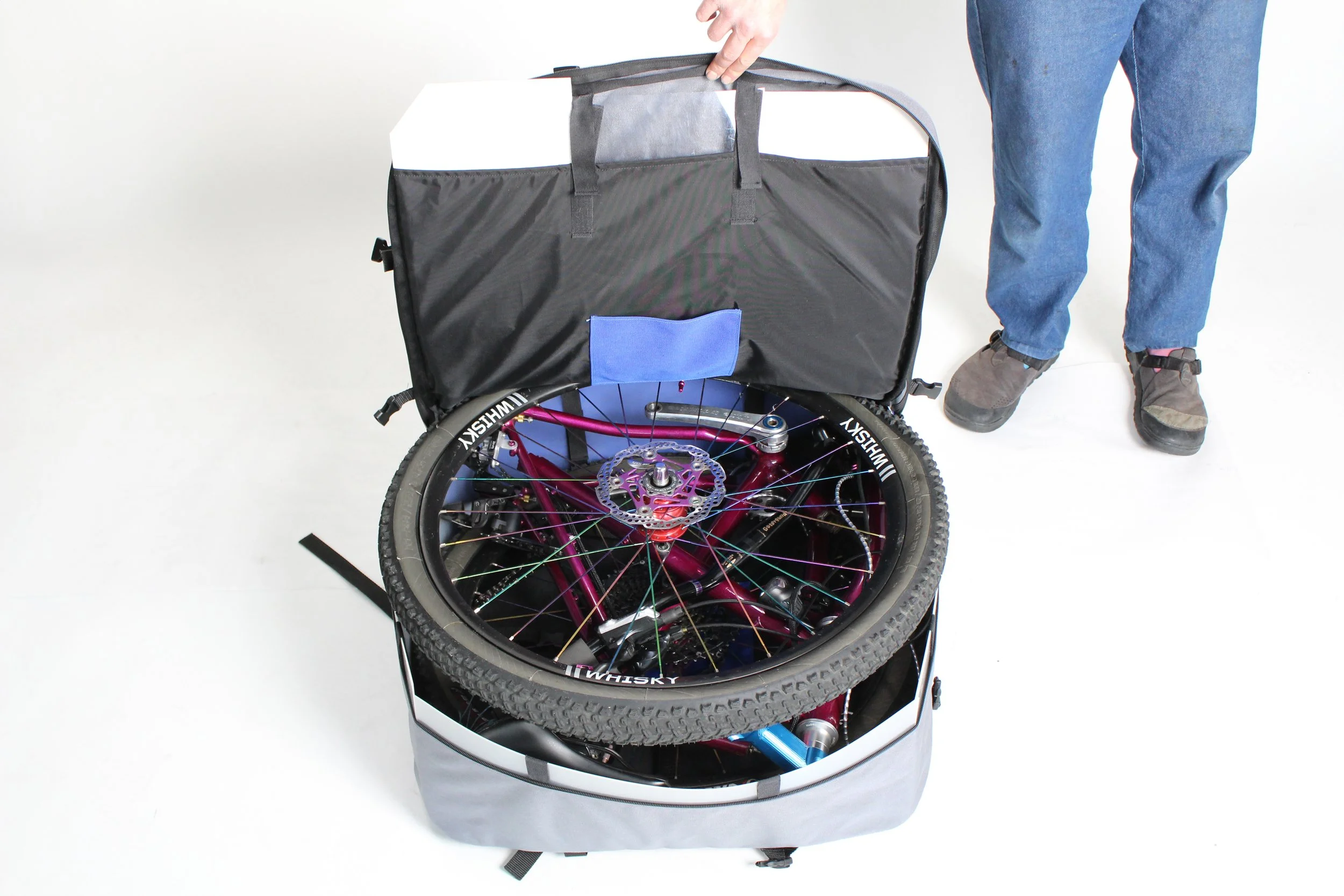

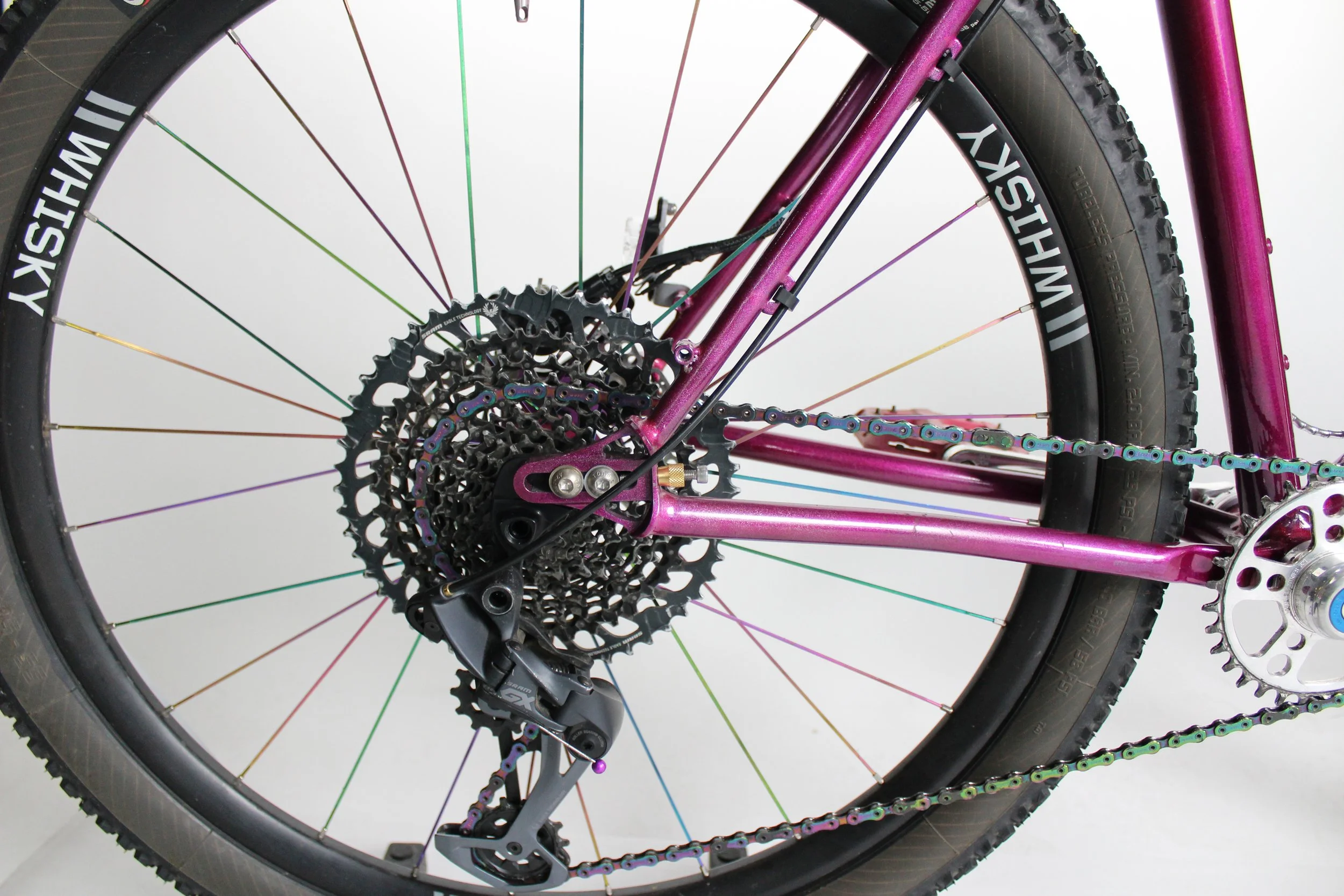

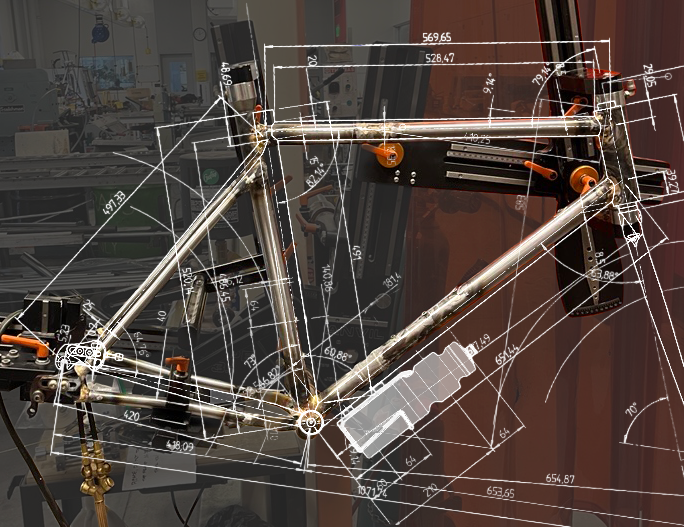

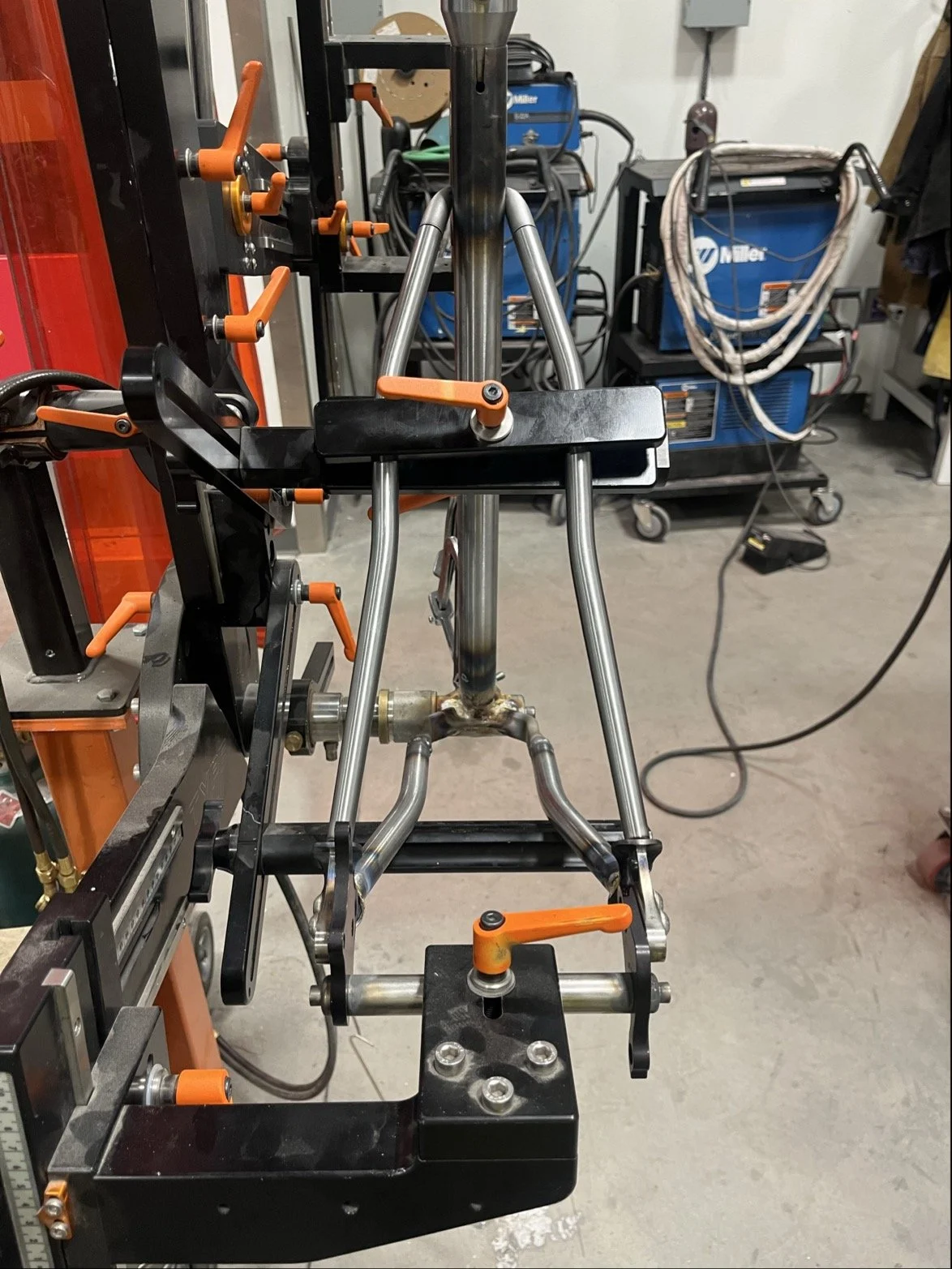

This is the first bicycle I fully designed and built myself. Made primarily with Columbus Zona tubing, with a 3D printed stainless steel yoke for wide tire clearance and Paragon z-couplers to pack down to under 62 liner inches to avoid airline fees. Inspired by 1990s mountain bikes and modern gravel geometry, it accommodates multiple wheel sizes and standards so riders can reuse components they already own. It supports single-speed or geared setups with wide tire clearance. Designed to work with parts you already own, and versatile for whatever trip you may have planned, the frame accommodates 135QR, 142TA or 148 TA disc hubs, and 26inx2.8in, 27.5inx2.2in or 700c x 35mm wheels.
